Vertex Fan Jet Floating Pond Fountain

Vertex Fan Jet Floating Pond Fountain

$28,390.00 USD
$28,390.00 USD
Sale Sold out
Shipping calculated at checkout.

The Incredible FanJet

An extraordinary water feature that will undoubtedly become the centerpiece of any environment. The FanJet floating pond fountain series adds a magical touch with its elevated central display and matching lower-side design. These elements harmoniously combine to create a stunning spectacle for any water body. The FanJet fountain is controlled through a UL-listed panel, accompanied by a robust submersible turbine pump. Every component of the fountain is fully waterproof and crafted from premium, corrosion-resistant materials, guaranteeing your community benefits from years of outstanding performance and reliability.

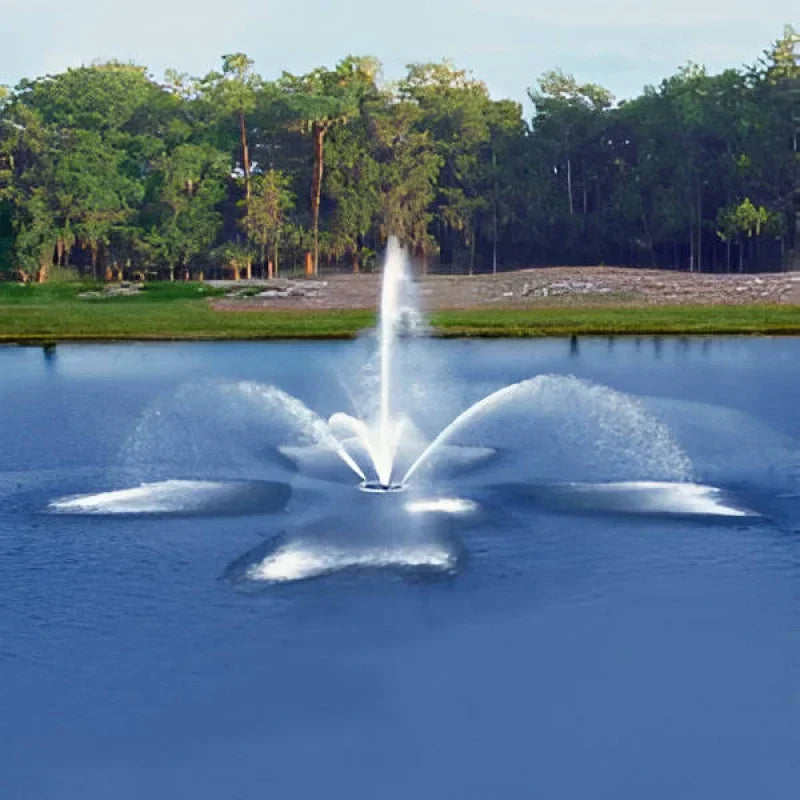

Vertex FanJet Floating Fountain Series On Water Display With Apartment On Background

Features & Benefits

Nozzles

  • Precision-crafted brass/bronze or stainless steel nozzles

Pumps / Motors

  • High-efficiency turbine pump/motor assembly
  • Made from stainless steel
  • Water-cooled: no oils, seals, or o-rings to maintain
  • 4-year warranty

Flotation

  • Rotocast polypropylene with UV protection for durability
  • Individual leveling compartments for accurate adjustments
  • 4-year warranty

Control Panel

  • UL listed per National Electrical Code
  • Weather-resistant steel enclosures

Submersible Light Fixtures

  • Energy-efficient LED, 140 lumens/watt
  • Stainless steel casing
  • 2-year warranty

Cables

  • STW-A rated
  • 4-year warranty

Technical Specifications

Vertex FanJet Floating Pond Fountain


 10 HP Unit
 15 HP Unit 20 HP Unit 30 HP Unit
Minimum Operating Depth 6' 7' 7'
 8'
Center Height (A) 25' 30'
 35' 45′
Side Height (B) 8' 10' 12' 15'
Diameter (C) 35′ 40′ 45′ 50'
LED Lights 7 7 9 9
Total Wattage 301W 301W 387W 387W
AMP Draw 3.5 3.5 4.5 4.5
Available Phase 1 & 3 1 & 3 3 3
1 Phase (Volts) 230 230 -
 -
3 Phase (Volts) 208 or 230 208 or 230 230 230
Display Heads Warranty 4-Year
 4-Year 4-Year 4-Year
Pumps & Motors Warranty 4-Year 4-Year 4-Year 4-Year
LED Lighting Warranty 2-year 2-year 2-year 2-year
Control Panel Warranty 1-Year 1-Year 1-Year 1-Year
